Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
Products
TIH Steam
Designed for durability, performance and safety while heating chemicals/acids or ultrapure DI Water. PTFE surfaces for permeation protection. Suitable for single pass, recirculating and steam applications.
3HX Series
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.
DSL Series – Combination Control
Precise, dual setpoint, digital combination control with heating and cooling up to 20-125 amps. 600 volts. Single phase. Adjustable temperature range from -40°F (-40°C) to 999°F (538°C).
DSL Series Relay/Control
Precise dual setpoint digital control / power relay with heating and cooling up to 30 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).
DSL Series Thermostat
Precise dual digital thermostat with heating and cooling up to 3 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).
HXT Series – Screwplug
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

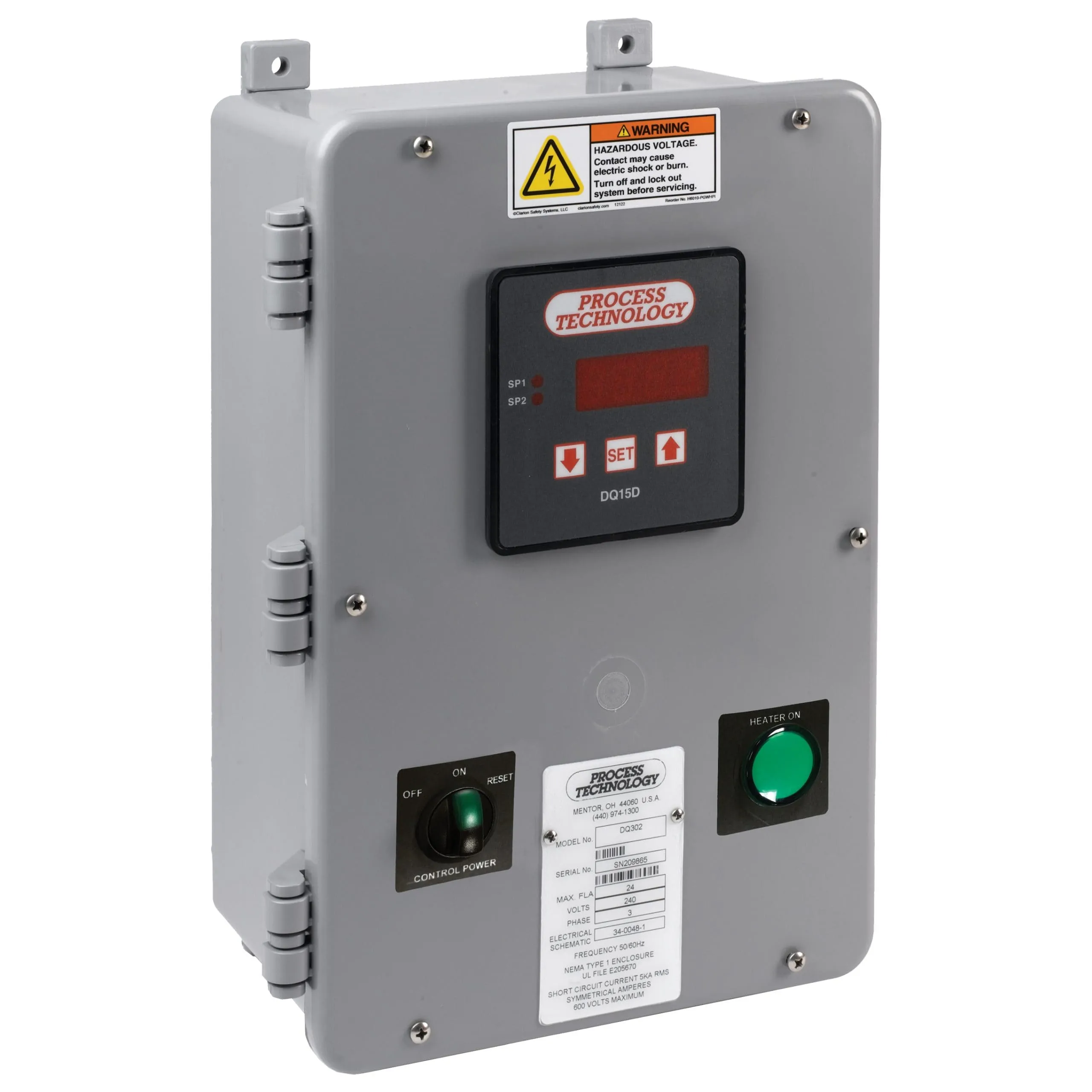

DQ Series Combination Control
Precise digital combination control for heating and cooling. Large (.56” high), easy to read LED display. 20-125 amps up to 600 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).
DQ Series Relay/Control
Precise digital relay control for heating and cooling. Large (.56” high), easy to read LED display. Up to 30 amps. 120-240 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).

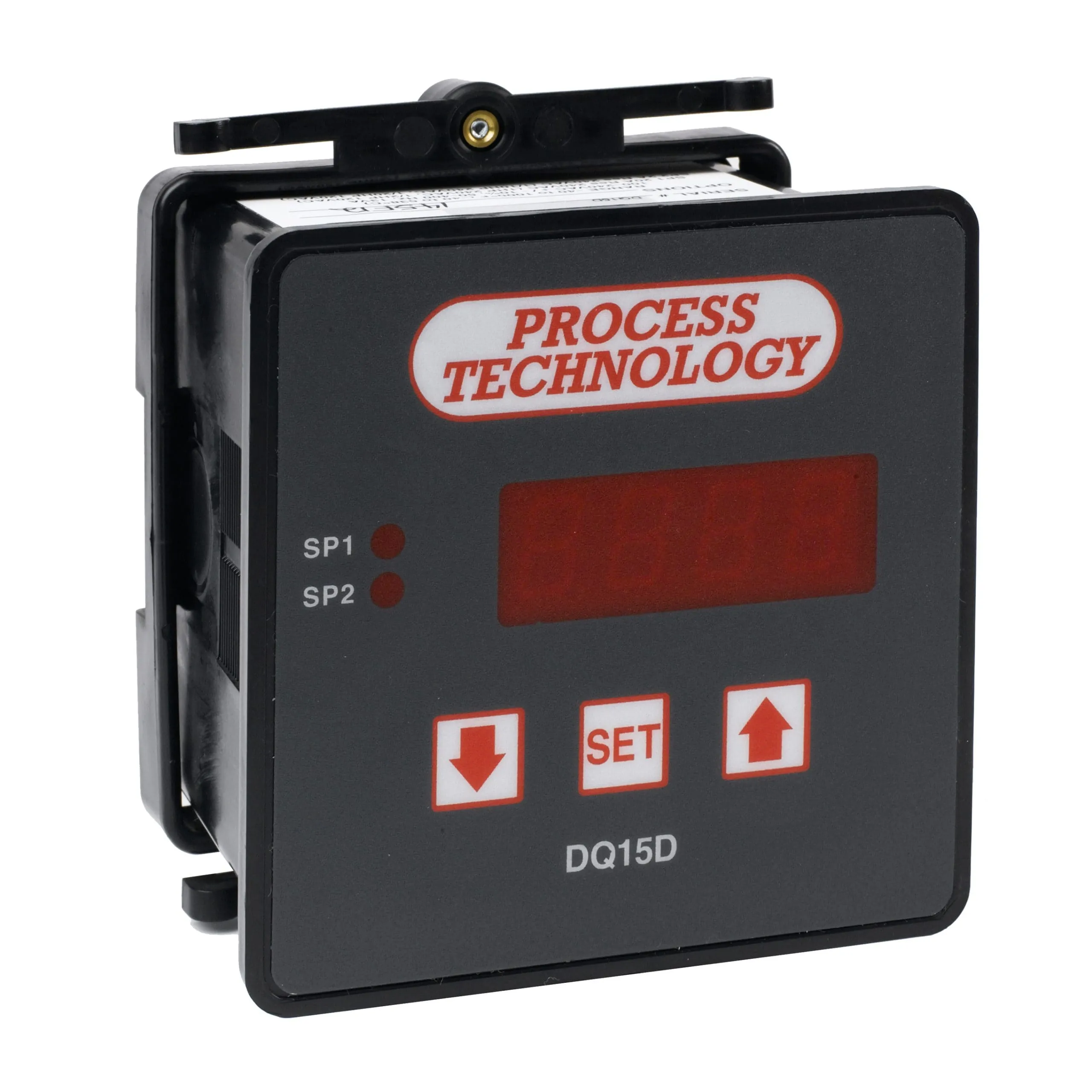

DQ Series Thermostat
Precise dual digital thermostat for heating and cooling. Large (.56” high), easy to read LED display. Up to 15 amps. 600 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).
FLX Series Flange Heater
Low watt density, fluoropolymer (PTFE) flanged heater. 3″ and 6″ flange sizes. 1000-18000 watts, 120-600 volts.

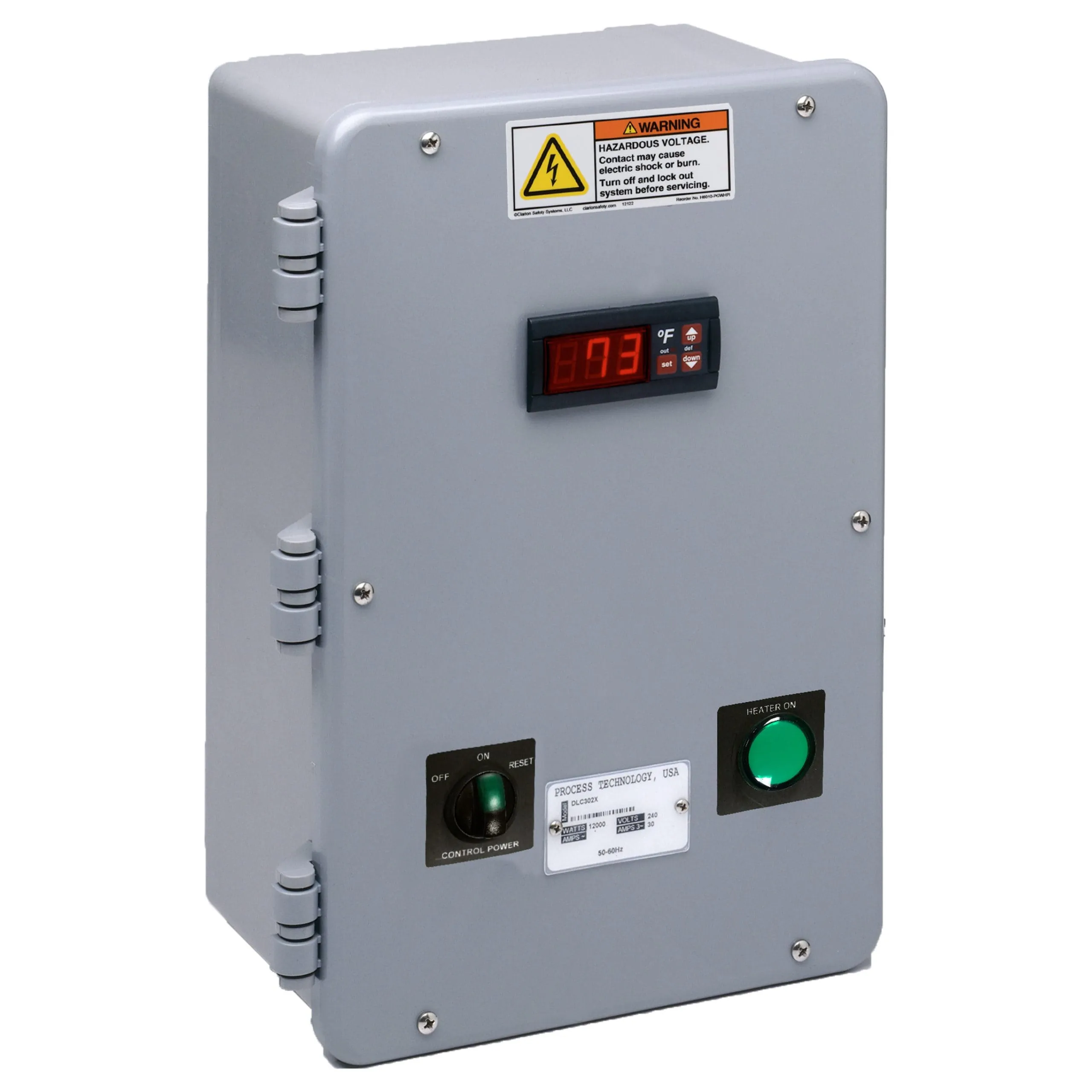

DLC Series Combination Control
Provides precise digital control. Single or three phase. Large (.56” high), easy to read LED display. 20-125 amps. Up to 600 volts. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).
DLC Series Relay/Control
Provides precise digital control. Single phase. Large (.56” high), easy to read LED display. 30 amps. 120-240 volts. Adjustable temperature range. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).
DLC Series Thermostat
Provides precise digital control for heating or cooling. Digital. Single phase. Large (.56” high), easy to read LED display. Up to 16 Amps. 120 or 240 volts. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).
DE Series Combination Control
Provides precise digital control. Single or three phase. Large (.56” high), easy to read LED display. 20-125 amps. Up to 600 volts. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)
DE Series Relay/Control
Provides precise digital control. Single phase. Large (.56” high), easy to read LED display. 30 amps. 120-240 volts. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)
DE 20 Series Thermostat
Provides precise digital control for heating or cooling. Digital. Single phase. Large (.56” high), easy to read LED display. Up to 20 Amps. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)

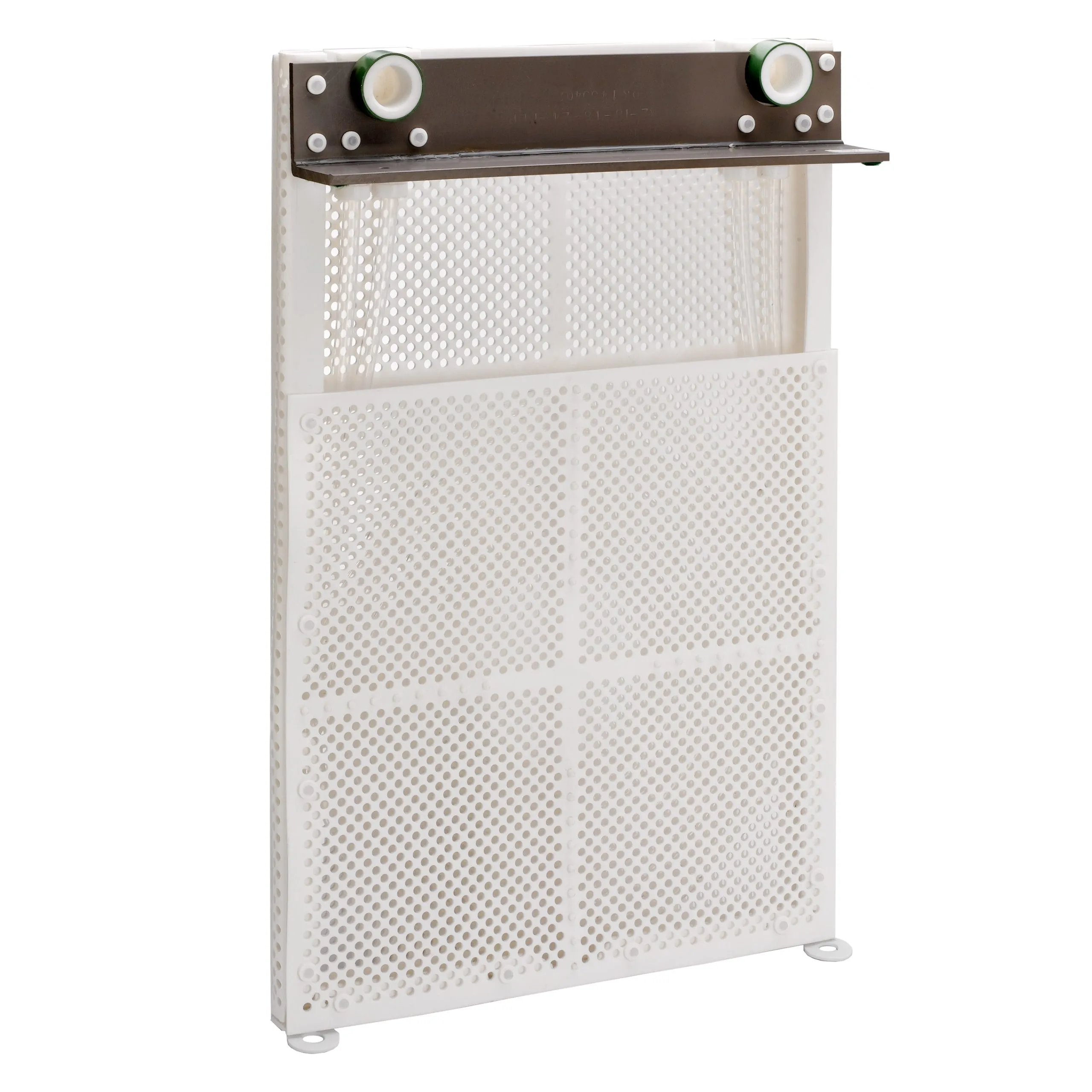

X Series Coil
Excellent chemical compatibility and rugged design for your heating or cooling application. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation.
9HX Series
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
6HX Series
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
TF Series
High-purity, fluoropolymer (PTFE) bottom heater. Single or three phase. 1000-6000 watts, 120-480 volts.
3HXOL Series
Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
HXSL Series
Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
HXRL Series
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
HXO Series
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
HXF Series
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
