Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Process Technology products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Products
B Series – Small Tank
Small metal over the side heater. Excellent for laboratory and small tank applications. Heats up to 300°F (149°C). Single phase. 500-1500 watts, 120-240 volts.

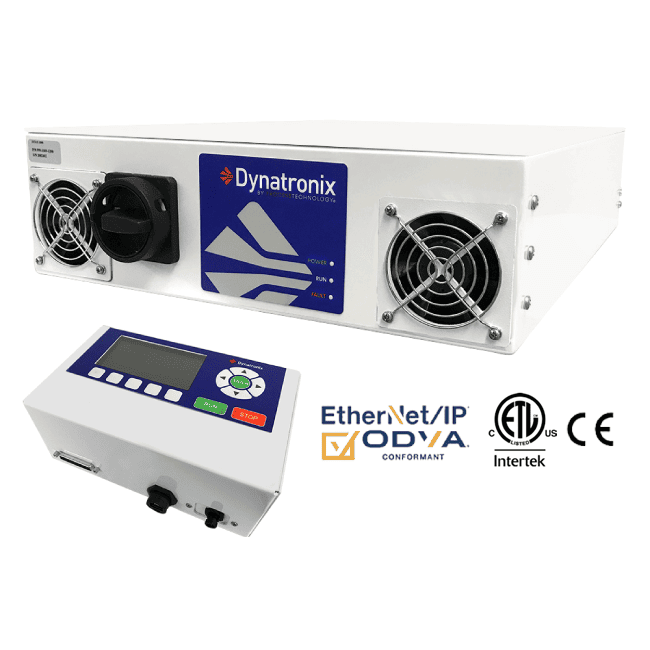

DTX-6000 Series
Superior performance and premium power with ripple-free output delivering smooth, clean DC. 200Hz, Air cooled, 160-500 amps, 12-100 volts, 6,000 watts.
3HS Series – Tubular
Over the side, 3 element, tubular heater. Three phase. Three phase. 3000-10500 watts, 208-600 volts.
MOTS Single – Derated
Derated, low watt density, metal over the side heater. Single or three phase. 500-6000 watts, 120-600 volts.

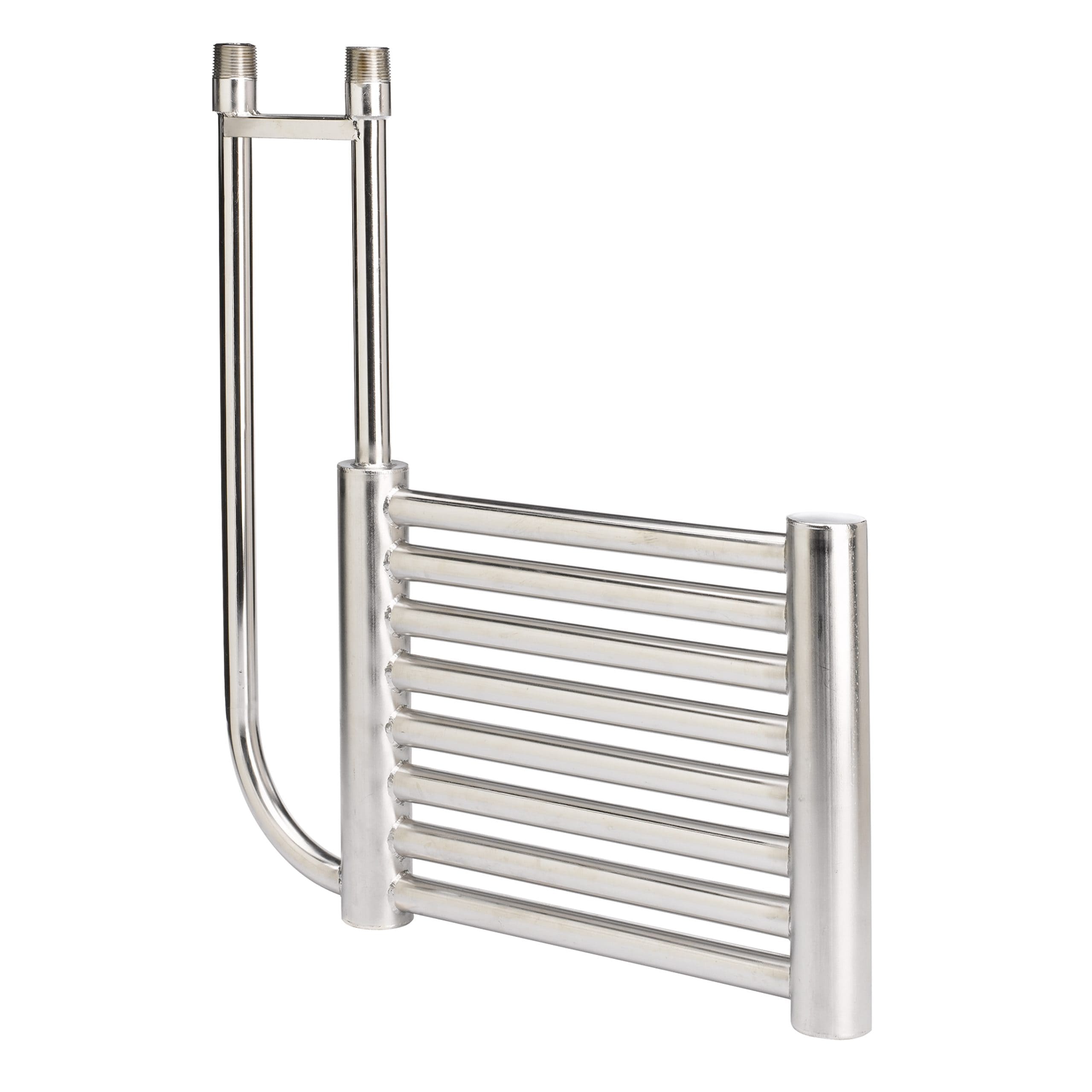

G (Grid) Series Coil
Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.

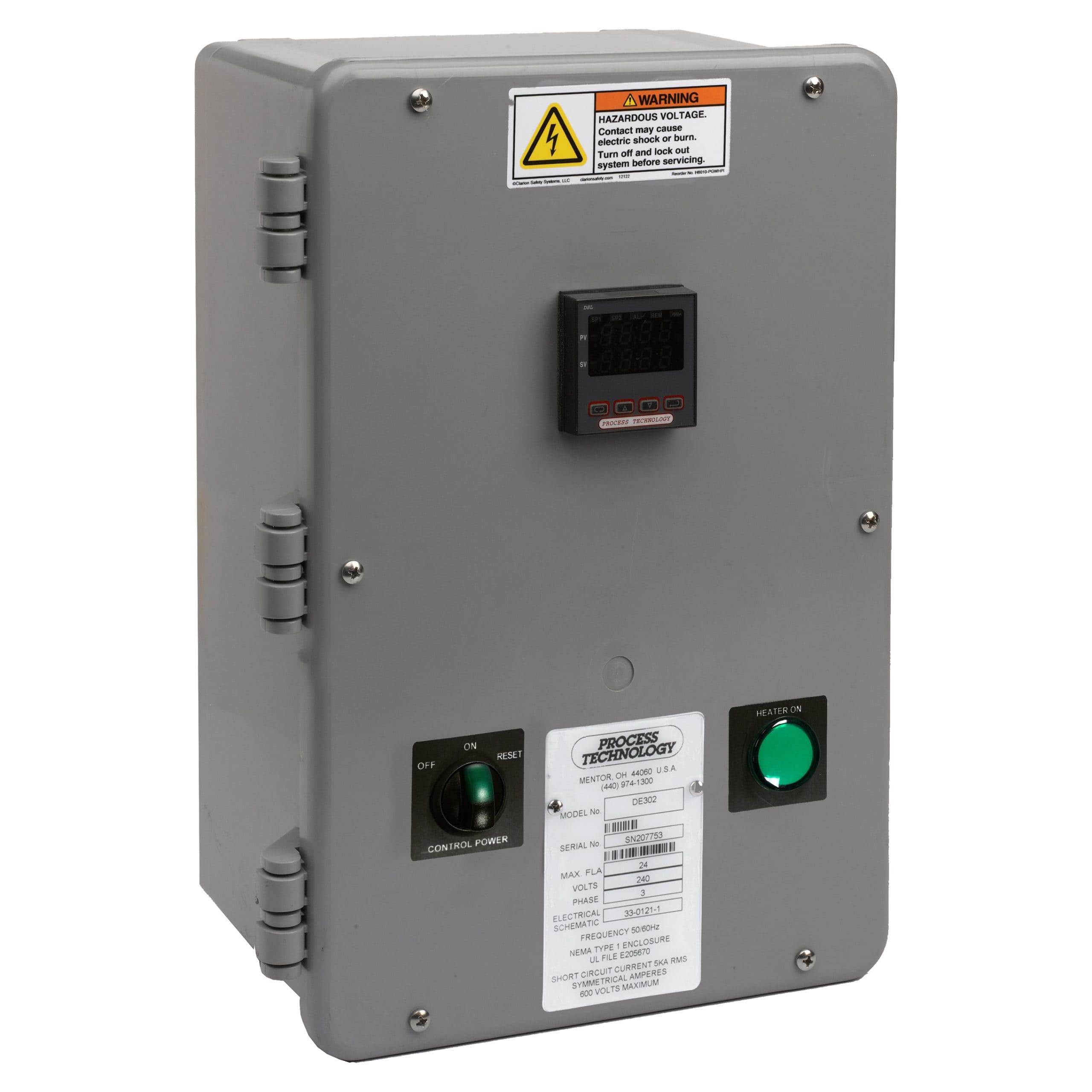

DSL Series – Combination Control
Precise, dual setpoint, digital combination control with heating and cooling up to 20-125 amps. 600 volts. Single phase. Adjustable temperature range from -40°F (-40°C) to 999°F (538°C).
DSL Series Relay/Control
Precise dual setpoint digital control / power relay with heating and cooling up to 30 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).
2T-T2T Series – Screwplug
Electric Immersion Metal Screwplug Heaters. 2000-15000 watts, 208-480 volts.

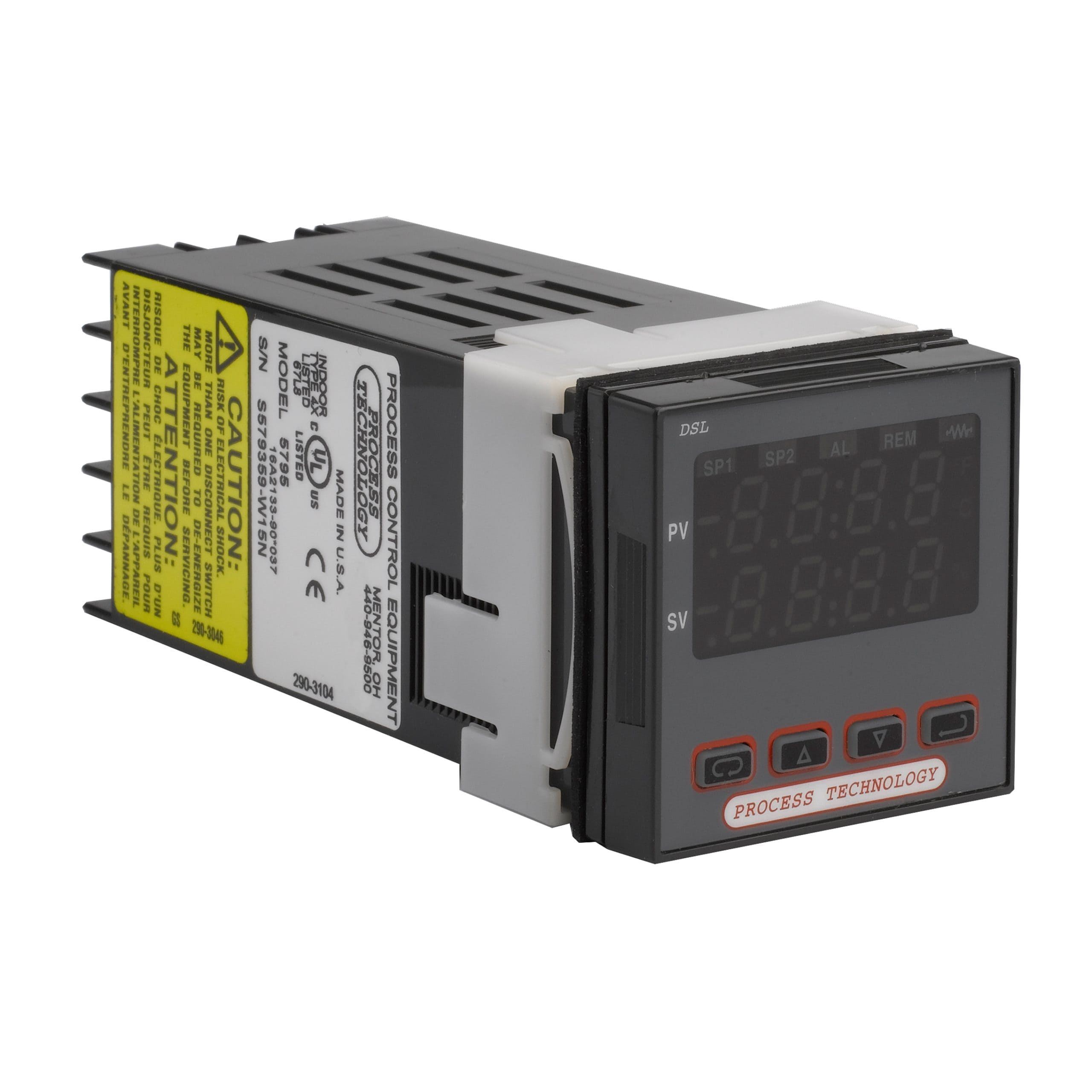

DSL Series Thermostat
Precise dual digital thermostat with heating and cooling up to 3 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).

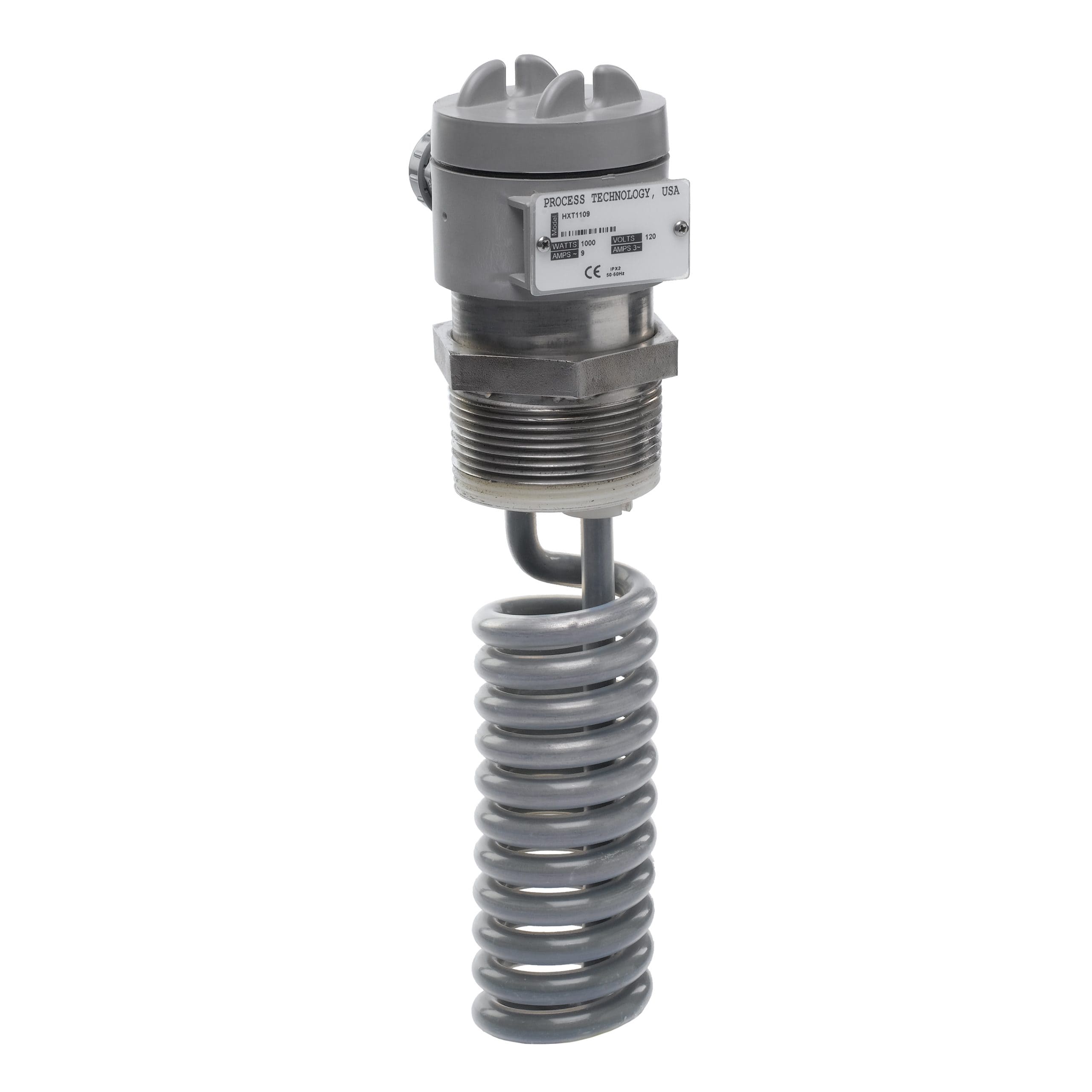

HXT Series – Screwplug
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

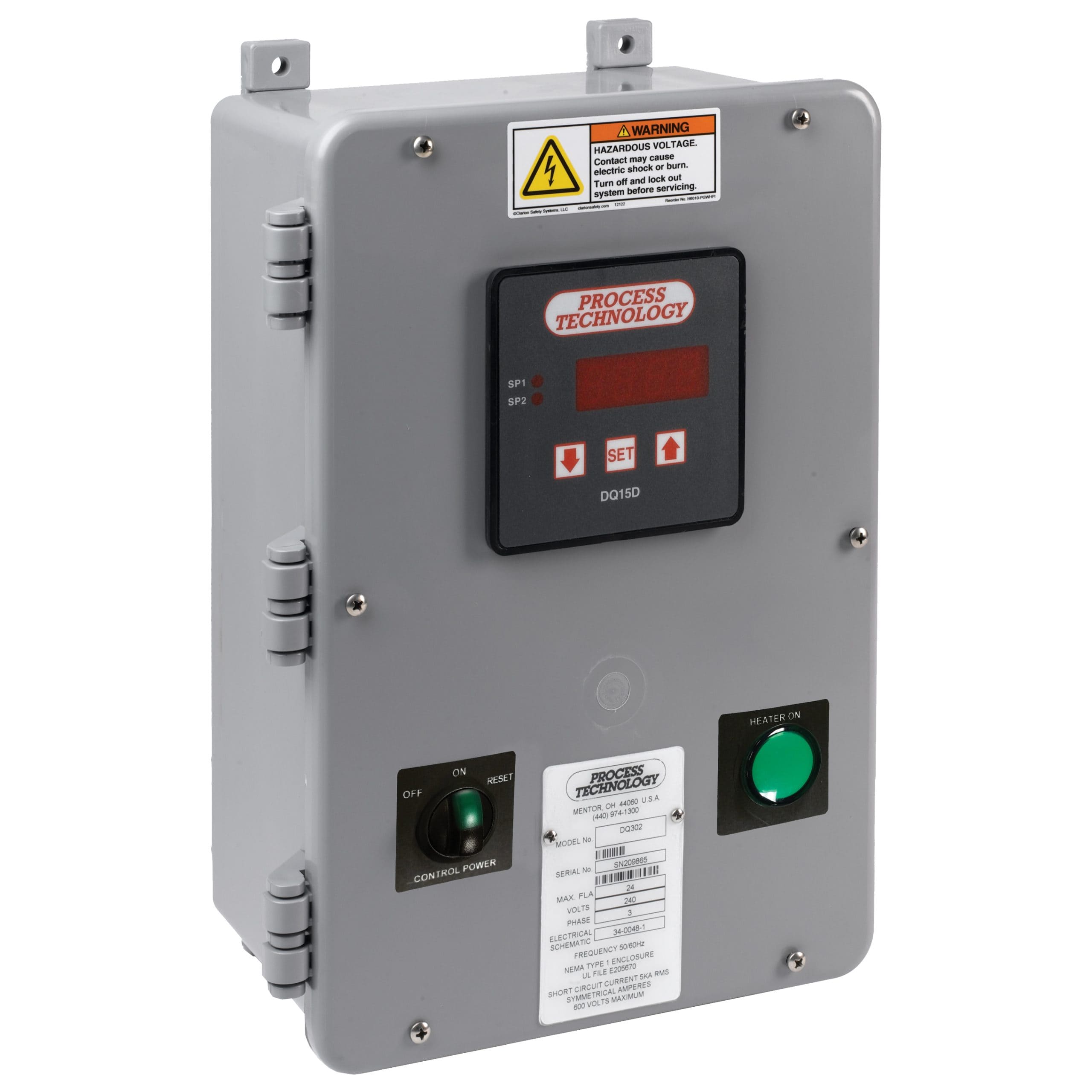

DQ Series Combination Control
Precise digital combination control for heating and cooling. Large (.56” high), easy to read LED display. 20-125 amps up to 600 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).
FLS Series Flange Heater
Metal flanged heater, 3″, 5″ and 6″ flange sizes. 3000-72000 watts, 208-600 volts.
DQ Series Relay/Control
Precise digital relay control for heating and cooling. Large (.56” high), easy to read LED display. Up to 30 amps. 120-240 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).

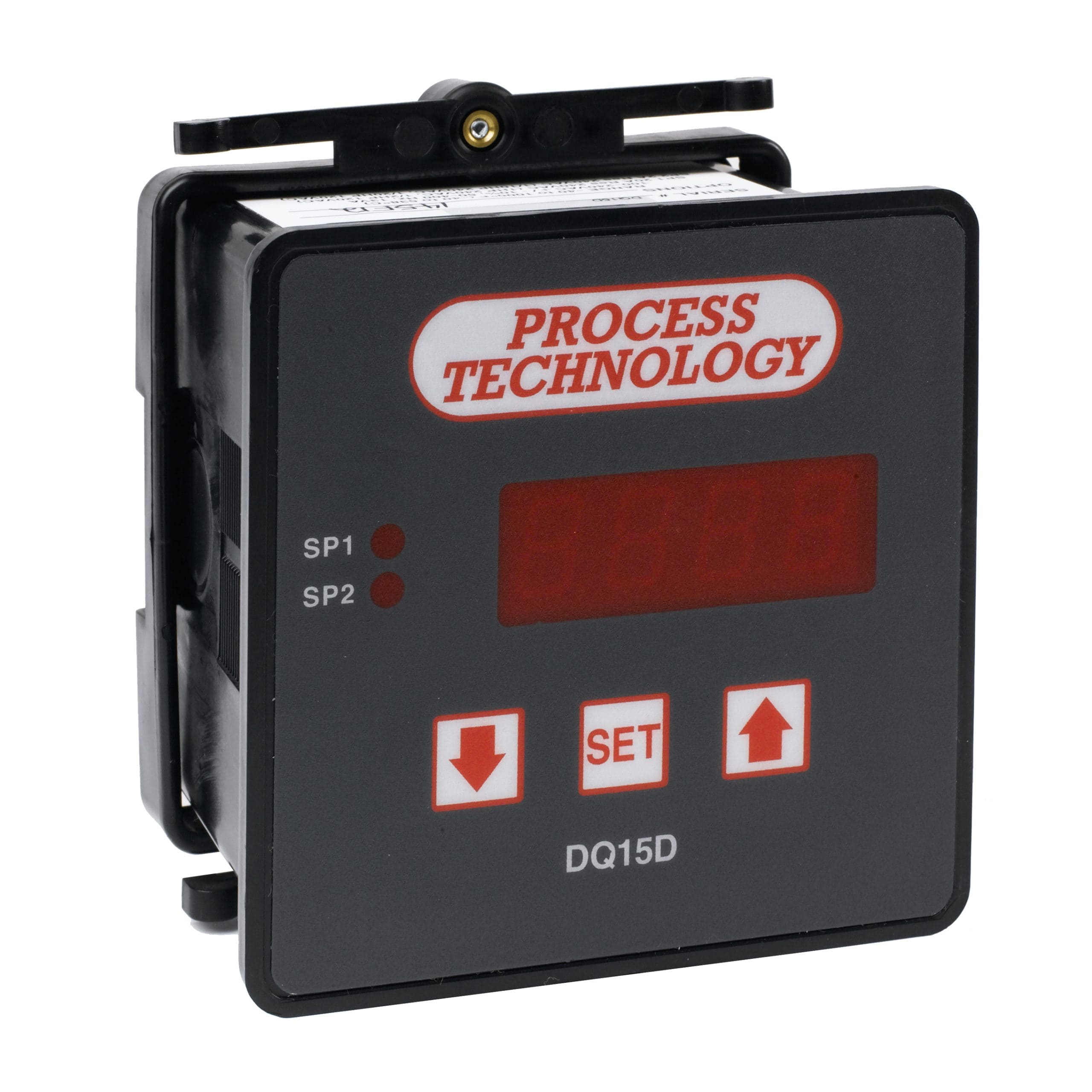

DQ Series Thermostat
Precise dual digital thermostat for heating and cooling. Large (.56” high), easy to read LED display. Up to 15 amps. 600 volts. Single or three phase. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C).
FLX Series Flange Heater
Low watt density, fluoropolymer (PTFE) flanged heater. 3″ and 6″ flange sizes. 1000-18000 watts, 120-600 volts.

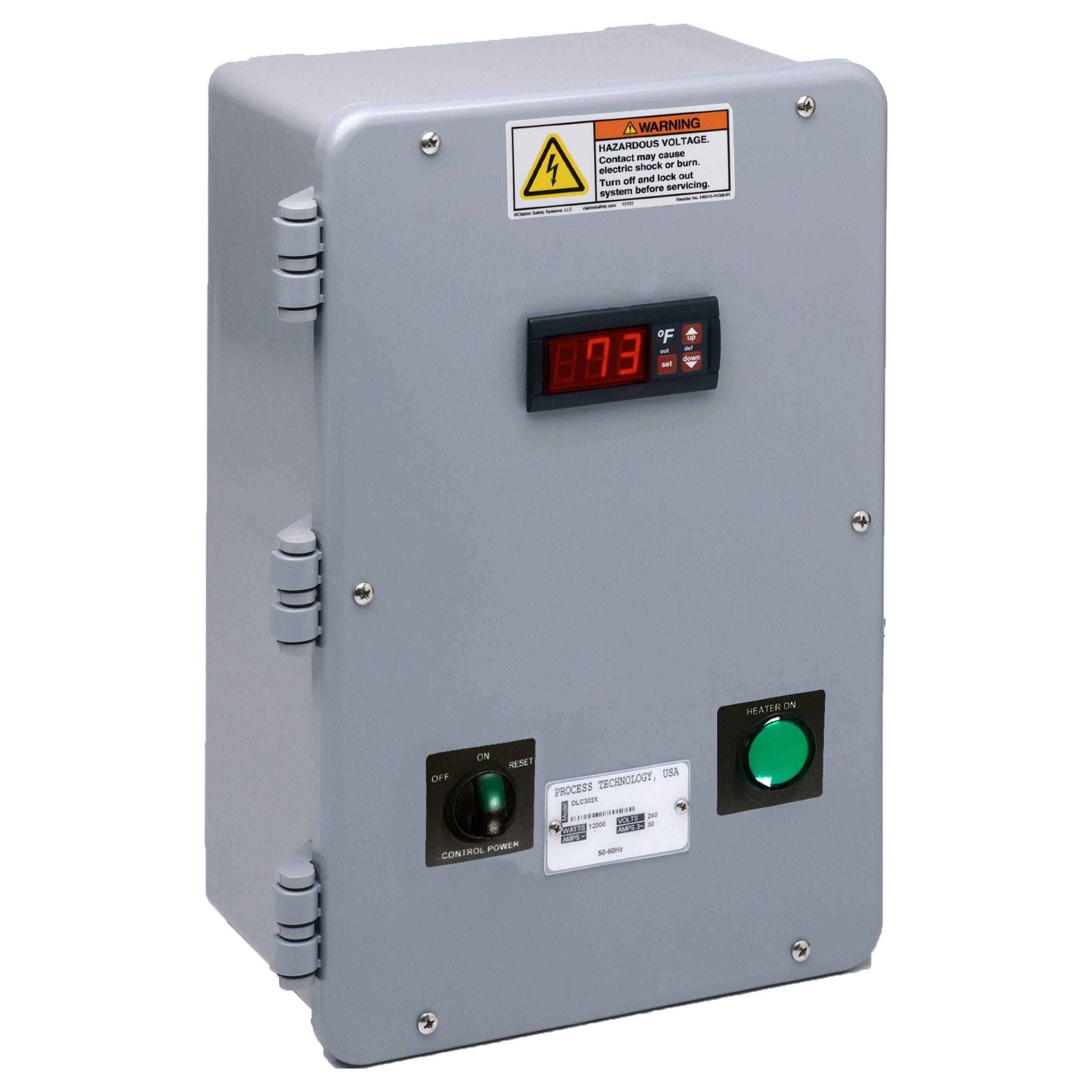

DLC Series Combination Control
Provides precise digital control. Single or three phase. Large (.56” high), easy to read LED display. 20-125 amps. Up to 600 volts. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).
DLC Series Relay/Control
Provides precise digital control. Single phase. Large (.56” high), easy to read LED display. 30 amps. 120-240 volts. Adjustable temperature range. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).
Branch Fusing Enclosure
Branch fusing provides electric heaters and controls with a safe alternative to wiring multiples into one contactor.
DLC Series Thermostat
Provides precise digital control for heating or cooling. Digital. Single phase. Large (.56” high), easy to read LED display. Up to 16 Amps. 120 or 240 volts. Adjustable temperature range from -58°F (-50°C) to 302°F (150°C).

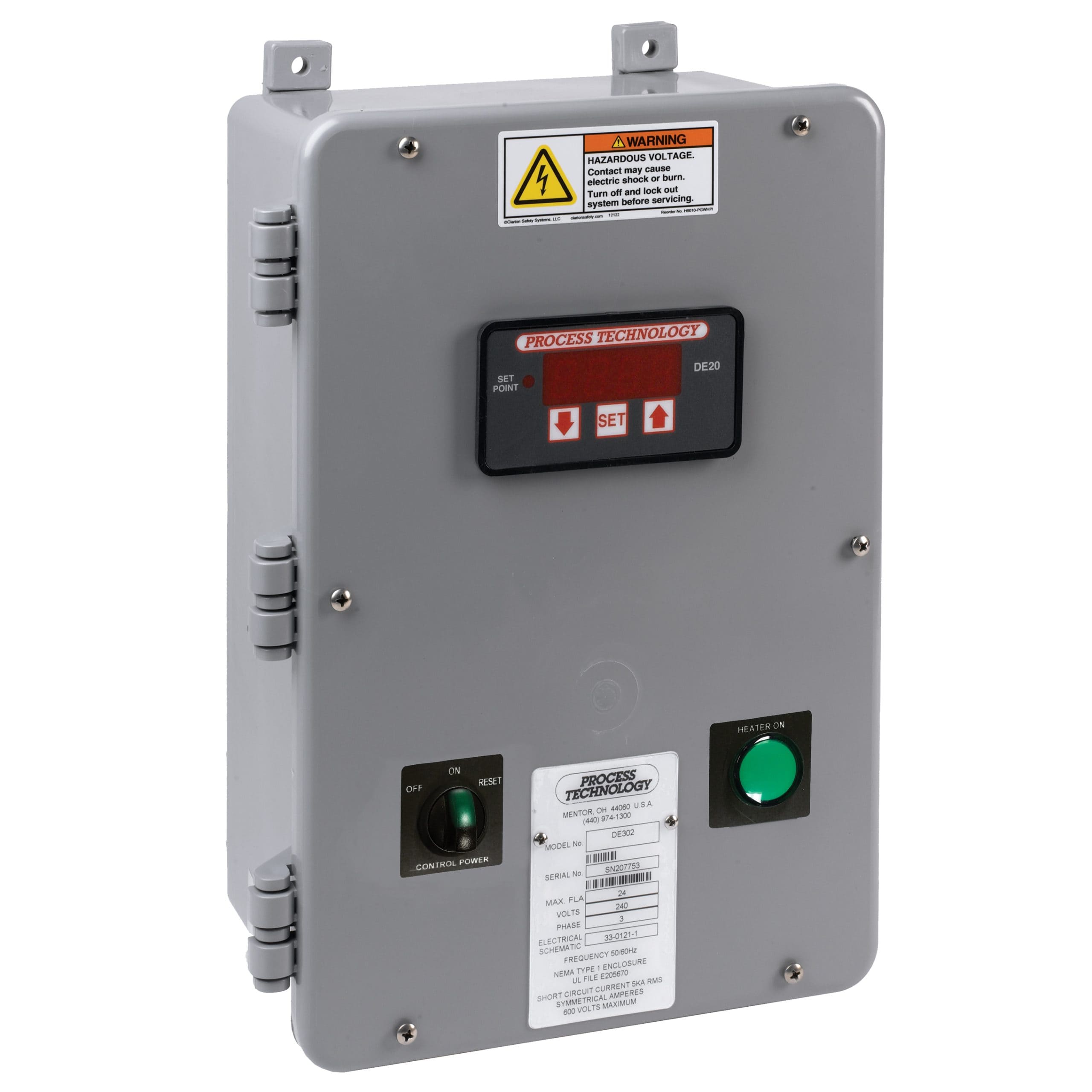

DE Series Combination Control
Provides precise digital control. Single or three phase. Large (.56” high), easy to read LED display. 20-125 amps. Up to 600 volts. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)
DE Series Relay/Control
Provides precise digital control. Single phase. Large (.56” high), easy to read LED display. 30 amps. 120-240 volts. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)

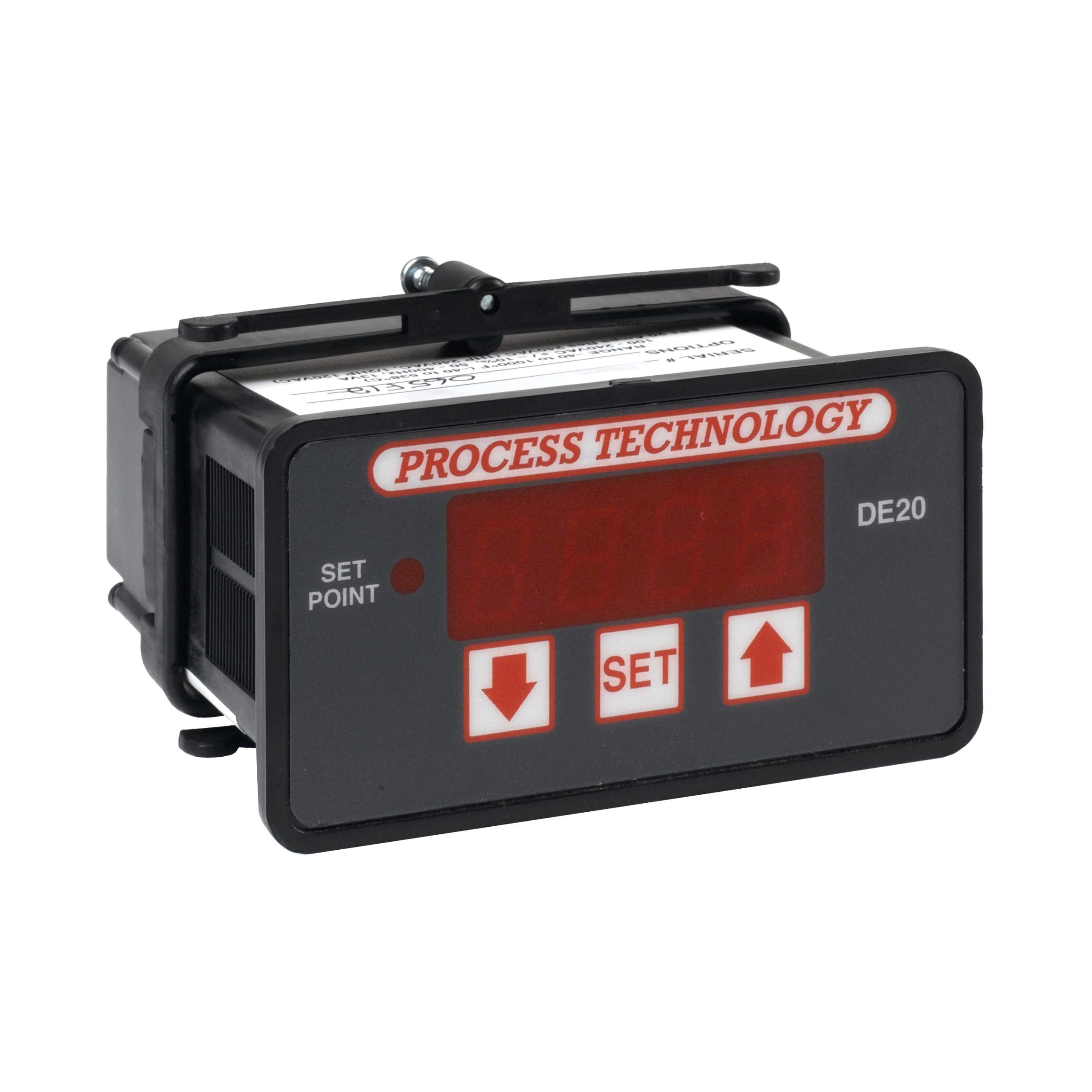

DE 20 Series Thermostat
Provides precise digital control for heating or cooling. Digital. Single phase. Large (.56” high), easy to read LED display. Up to 20 Amps. Adjustable temperature range from -40°F (-40°C) to 1000°F (538°C)
X Series Coil
Excellent chemical compatibility and rugged design for your heating or cooling application. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation.
U Series Coil
Metal Immersion Coil in U shape for chemical heating or cooling requiring minimal recovery time. Available in steel, 316 stainless steel and titanium.
DTX-12000 Series
Superior performance and premium power with ripple-free output delivering smooth, clean DC. 200Hz, Air cooled, 120-1,000 amps, 12-100 volts, 12,000 watts.
DTX-2400 Series
Small footprint powerhouse! DC, 200Hz, Air cooled, Benchtop 10-100 amps, 10-100 volts, 2400 watts, Switch-mode technology
MOTS Triple – Vertical
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.
9HS Series – Tubular
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.
V Series – Varipower
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
MOTS Single
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.
MOTS Single – DAS, Phosphate
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.
MOTS Triple – L shaped, Derated
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
MOTS Single – Bottom, Derated
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

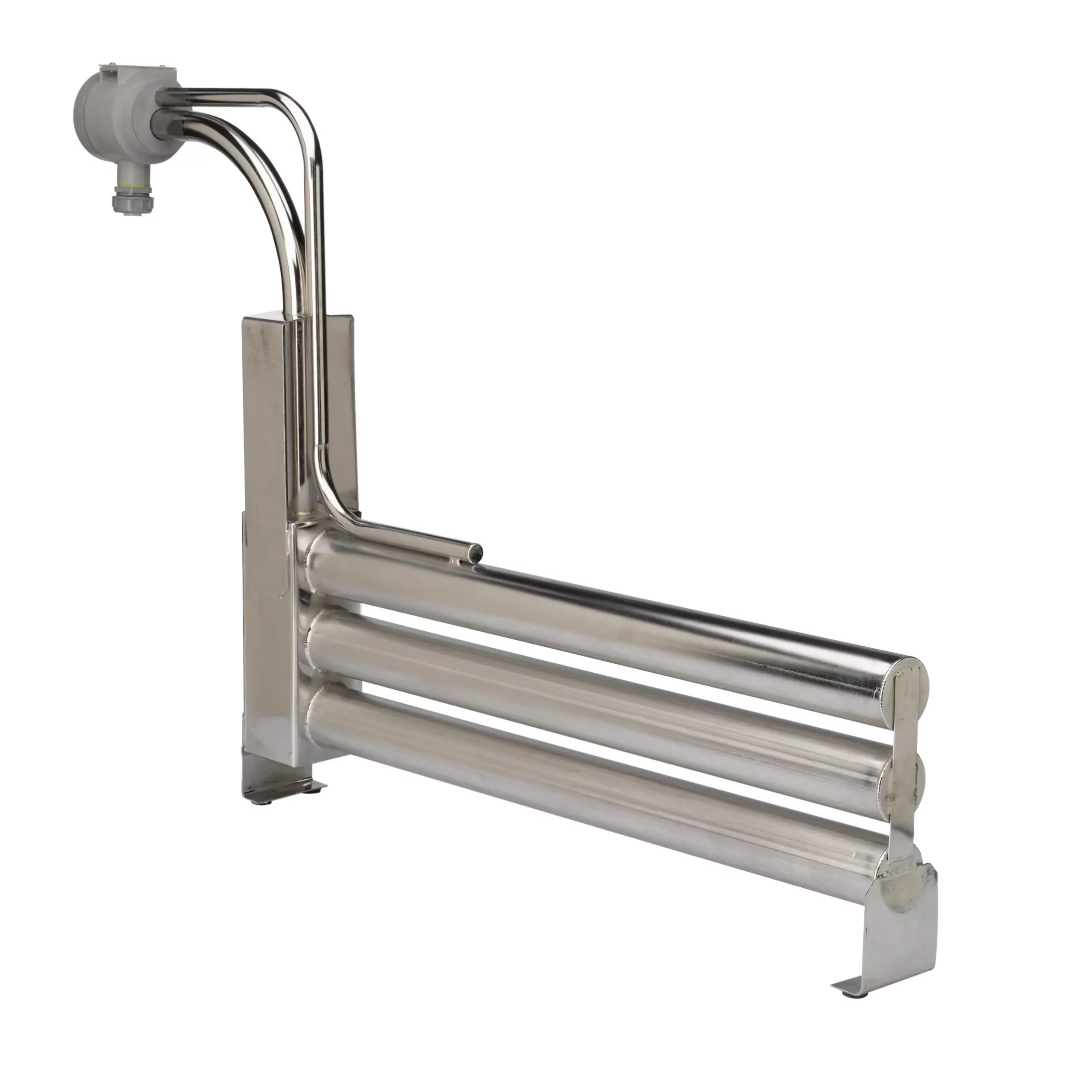

MOTS Triple – L shaped
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.
6HS Series – Tubular
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
MOTS Triple – Deep Tank
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
MOTS Triple – Derated
Derated, low watt density, metal over the side heater. Three phase. 1500-18000 watts. 120-600 volts.
9HX Series
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
6HX Series
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
TF Series
High-purity, fluoropolymer (PTFE) bottom heater. Single or three phase. 1000-6000 watts, 120-480 volts.
3HXOL Series
Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
HXSL Series
Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
HXRL Series
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
HXO Series
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
